LAN Isolation Transformer 1000Base T

LAN Isolation Transformer 1000 Base T SMT Mounting POE with 720 mA Current Capacity

GLGNET LAN Isolation Transformer intended for RJ45 jack applications are compatible with wide a set of Ethernet PHY chipsets supporting VOIP, PoE, PoE+ and PoE++ and data rates including 10/100Base-T, 1000Base-T and 10GBase-T for networking and industrial applications.

GLGNET LAN Isolation Transformer Main applications as following:

• PCs
• Workstations
• Networkings
• Communications
• 1000 Base - T Ethernet with POE
• RJ45 Modular Jacks
• PCBs
• Hubs
• Routers
• Swithcers
• Splitters
• Servers

This is not a definitive list of applications for this product. It represents some of the more common uses.

GLGNET Supplies variety LAN Isolation Transformers and RJ45 Modular Jacks with Integrated Transformer;

Some customers would like to buy RJ45 Modular Jack without magnetics and Isolated Transformers seperately based on their available PCB design, also this way can save cost.

GLGNET can meet your requirements, both RJ45 Modular Jack without magnetics + isolated transformer and RJ45 modular Jack with integrated Magnetics, we can supply;

GLGNET not only supply standard Ethernet isolation Transformer, we also support Customization as required, GLGNET custom service include:

• Isolation or combined with RJ45 Jack together
• Support 10/100Base-T, 1000Base-T or 10GBase-T
• Through hole Mounting Type or SMD Mounting Type
• Custom different Outline Dimension
• With POE, POE+, POE++ Functions or without
• 0 to 70 ℃ or -40 to 85℃ Operating Temperature
• Support different Soldering Foot Length, "U" form Terminals or "V" formTerminals
• The Transformer Housing Can be with fixed Slots

1. GLGNET LAN Isolation Transformer Features

• IEEE 802.3at/ANSI X3.263 compliant performance.

• Suitable for End-span POE applications with 720mA current
  capability.

• Including 350uH OCL with 8mA bias.

• Compatible with 1000 Base- T PHY ICs

• ROHS peak reflow temperature rating: 245℃

• 2250 VDC @ 60 Seconds Hi-po

• Operating temperature range: 0℃ to +70℃.

• Storage temperature range: -25℃ to +125℃

2. GLGNET LAN Isolation Transformer Electrical Specification

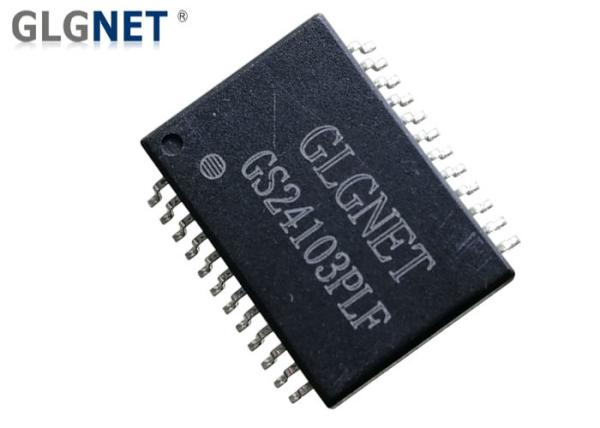

3. GLGNET LAN Isolation Transformer Product Structure​

`

• LAN Isolation Transformer with POE Power Over Ethernet
• POE with 720 mA Current Capacity
• SMT mounting type with 24 Soldering Legs
• Package Length: 18.1 mm
• Package Width: 16 mm
• Package Height: 6.8 mm
• With Part number and date printing on

4. GLGNET Advantages

• Support Custom Service
• 20KK Prots / Month Capacity
• 20 years experiences in Variety Connectors and related Components
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We can supply Isolated Transformers and JR45 Jacks with integrated Transformer
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

5. Drawing

ethernet isolation transformer

ethernet lan transformer

LAN Isolation Transformer 1000Base T Images
