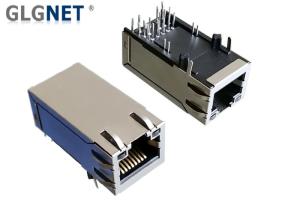

Industrial Grade 1G Rj45 Poe Magjack 100W UPOE+ Tab Up RJ45 Modular Jack

1. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y ) Features

2. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y ) Parameters

Part Number	PGCA1T1004PW-D4Y	Brand	GLGNET
Place of Origin	Guangdong of China	Certification	IECQ QC080000, UL, RoHS, REACH
Product Type	RJ45 Modular Connector	Connector Style	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With
Shielded EMI Tabs	Yes	Applies To	1000 Base-T Ethernet with 100W UPOE+
Performance Speed	1000 BASE-TX Integrated Transformer	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1x1 Single Port	Number of Positions	8P8C
Shield Material	0.2mm thickness brass	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold plating 50u"	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Soldering Process	Wave soldering process,	Soldering Condition	260℃ max, 10 seconds max.
Housing Material	Glass Filled PA46	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0
Operating Temp.	-40℃ to 85℃	Storage Temp	-40℃ to 85℃

3. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y ) Applications

This is not a definitive list of applications for this product. It represents some of the more common uses.

4. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y )Structure

Description	Single Port POE Magnetic RJ45 Modular Jack
Latch	Latch up
Package Height (mm)	13.6mm
Package Length (mm)	33.02mm
Package Width (mm)	16.33mm
Soldering Foot Length (mm)	3.17mm
Signal Pins Pitch	1.015mm
LED Pins Pitch	2.54mm
Contact Mating Area Plating	50u", Can be customed as 1.8" , 3u", 6u",15u", 30u", 50u" Au Plating
Integrated Magnetic Speed	1000 BASE-T
Mounting Type	Through Hole
EMI Spring	Yes, ensure better EMI Protection
LED Light	Yes, Green&Orange / Yellow
Operating Temperature	-40℃ to +85 ℃
Storage Temperature	-40℃ to +85 ℃

5. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y ) Electrical Specification:

Parameter	Specification
Brand	GLGNET
Operating Temperature	-40℃ to 85℃
Turns Ratio	1:1±3%
Open Circuit Inductance (ocl)	220uH MIN@ 100KHz/100mV with 19mA DC Bias (For Channel 1, 2, 3, 4 ) 350uH MIN@ 100KHz/100mV with 8mA DC Bias (For Channel 1, 2, 3, 4 )
Insertion Loss (IL)	-0.1dB Max @0.3MHZ-100MHz;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -13dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1-100MHz
Common mode Rejection Ratio(CMRR)	-30dBMIN@1-100MHz
CURRENT/VOLTAGE RATING-PSE PINS	920mA MAX IMUM@57VDC(CONTINUOUS) For PSE Channel(P13&P14, P15&P16)
HI - POT	2250 VDC @ 60 Seconds

6. GLGNET RJ45 Modular Jack (PGCA1T1004PW-D4Y ) Drawing

Industrial Grade 1G Shielded Rj45 Jack Poe Magjack 100W UPOE+ Tab Up RJ45 Modular
