Name: Bi Colored LED Ethernet RJ45 Modular Jack Connector Non POE With EMI Spring
Brand: GLGNET
Price: 1 USD

Brand Name : GLGNET

Model Number : JRA1T805-D1D1 Magnetic RJ45 Modular Jack

Certification : ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20KK ports /month

Delivery Time : 10 work day

Packaging Details : Tray, Tube, Reel, Carton

Application : 1G Ethernet

Mounting Type : DIP

Latch Direction : Tab Up

EMI Spring : Wtih

LED Color : Green Yellow Bicolored

Housing Material : PA46

Contact Now

DIP Mounting Ethernet RJ45 Connector Tab up 1G RJ45 Modular Jack Bi colored LED

1. GLGNET 1000 Base-T Tab up RJ45 Modular Jack (JRA1T805-D1D1) Physical Attributes:

General
Status	Active
Category	Modular Jacks/Plugs
Part #	JRA1T805-D1D1
Component Type	PCB Jack
Magnetic	Yes, 1000 Base-T
Overview	Magnetic Modular Jacks
Power over Ethernet (PoE)	Non POE
Product Name	Magnetic Jack, Modular Jack 8/8, RJ45
Physical
Housing Color	Black
Flammability	UL94V-0
Tab	Up
Jack Height (mm)	13.8
Jack Length (mm)	21.5
Jack Width (mm)	15.7
Soldering Foot Length (mm)	3.2
Contact Mating Area Plating	30u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring	Yes
Lightpipes/LEDs	Green&Yellow/Green&Yellow bicolour LED
Material - Metal	Brass, Phosphor Bronze, Nickel
Material - Plating Mating	Gold
Material - Plating Termination	Tin
Material - Plastic	High Temperature Thermoplastic(PA46)
Orientation	Right Angle (Side Entry)
PCB Locator	Yes
PCB Retention	Yes
Packaging Type	Tray
Pitch - Termination Interface	1.27mm
Ports	1x1 single port
Storage Temperature	0° to +70°C
Temperature Range - Operating	-40° to +85°C
Waterproof / Dustproof	No
Remark	The Part is recommended for wave soldering process, soldering temperature is 260 ℃ MAX. 10 Seconds Max;

2. GLGNET 1000 Base-T Tab up RJ45 Modular Jack (JRA1T805-D1D1) Features

3. GLGNET 1000 Base-T Tab up RJ45 Modular Jack (JRA1T805-D1D1) Applications:

4. GLGNET 1000 Base-T Tab up RJ45 Modular Jack (JRA1T805-D1D1) Electrical Attributes:

Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1MHz – 100MHZ
HI - POT	2250 VDC @ 60 Seconds

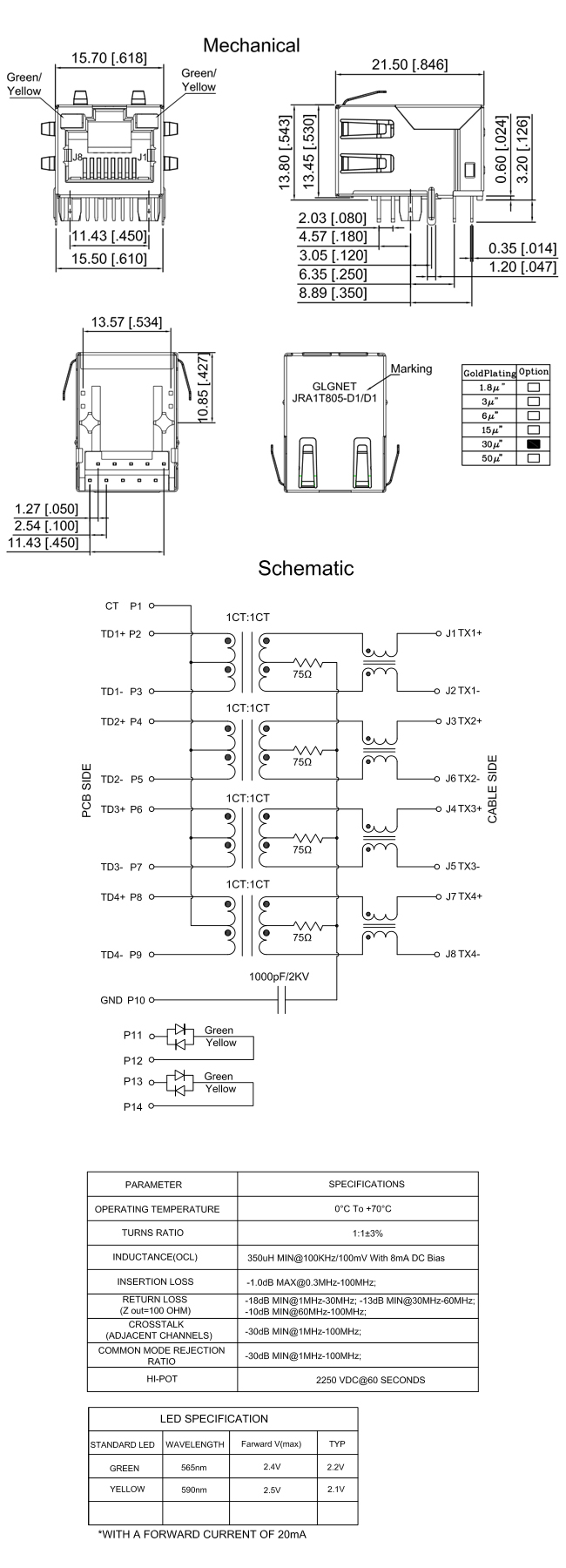

5. GLGNET 1000 Base-T Tab up RJ45 Modular Jack (JRA1T805-D1D1) Mechnical Drawing
