Black Shielded RJ45 Magnetic Modular Jack 1 X 1 Single Port For IP Cameras

Name: Black Shielded RJ45 Magnetic Modular Jack 1 X 1 Single Port For IP Cameras
Brand: GLGNET
Price: 1 USD

Wholesale Black Shielded RJ45 Magnetic Modular Jack 1 X 1 Single Port For IP Cameras from china suppliers

Brand Name : GLGNET

Model Number : JRU1T411-GY

Certification : ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20KK ports /month

Delivery Time : 10 work day

Packaging Details : Tray, Tube, Reel, Carton

Tab : Tab Up

Shielding Materials : Copper Alloy preplated with Nickel

LED Color : Green Yellow

Transformer Speed : 10 / 100 Base - T

Number Of Port : 1 x 1 Port

Operating Temp : 0 To 70 ℃ or -40 To 85 ℃

Contact Now

Black Shielded RJ45 Magnetic Modular Jack 1 X 1 Single Port For IP Cameras

1. GLGNET JRU1T411-GY - Magnetic RJ45 Connector Structure:

With 10 / 100 Base - T Integrated Transformers;
Latch Up / Tab Up
6 u " Godling Plating;
Through Hole Mounting Type;
Black Color with Shielding Shell
With EMI Finger
With Green Yellow LED

2. Materials:

Housing: Class Filled PA46 ( Black) UL94V-0 (ROHS)
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
Operating Temperature: 0 ℃ to +70 ℃ or -40 ℃ to 85 ℃ , Storage Temperature : -40 ℃ to +85 ℃
Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches At Mating Interface;

3. Features

-40°C to +85°C or 0°C to +70°C operating temperature range
Combinations of green, yellow, orange, and red LEDs
Complies with requirements of IEEE 802.3u standards
RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
Comply with RoHS requirements
Broad set of configurations
Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, or 5GBase-T
Supports PoE and PoE+ (10/100Base-T)
Compatible with surface-mount with paste-in-hole (PIH) technology

4. Electrical Specification

Parameter	Specification
Brand	GLGNET
Operating Temperature	0℃ to 70 ℃
Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1MHz – 100MHZ
HI - POT	2250 VDC @ 60 Seconds

5. LED Specification

Standard LED	Wave Length	Farward (max)	TYP
Green	565 nm	2.4V	2.2V
Yellow	590 nm	2.5V	2.1V

6. Product Attributes

Applications	10 / 100 Base - T
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	6u", 15u", 30u", 50u" Gold Plating
Cores per Port	8
Diodes	Can be with or without Without DIODES
LED Option	Can be with or Without LED
Shielding	Without Shielding Shell
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Latch	Up
Number of Ports	1 X 1 Single Port
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	10 / 100 BASE-T
Operating Temperature	0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

7. GLGNET Customization:

Supports to custom different structure, Tab - up or Tab - Down;
Supports to custom different Pin Length;
Being with or without LED diode,
Being with or without EMT TAB ( EMI Spring , EMI Finger );
Being with or without lightpipes;
LED color can be green, yellow, orange, red and so on;
Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;

8. Applications:

Broadcast video
Set-top boxes and video
Power over Ethernet (PoE)
Test and measurement
Multifunction printers (MFP)
IP cameras, surveillance, and phones
Access points
Network interface cards (NIC)
Industrial process control
Networking and communications

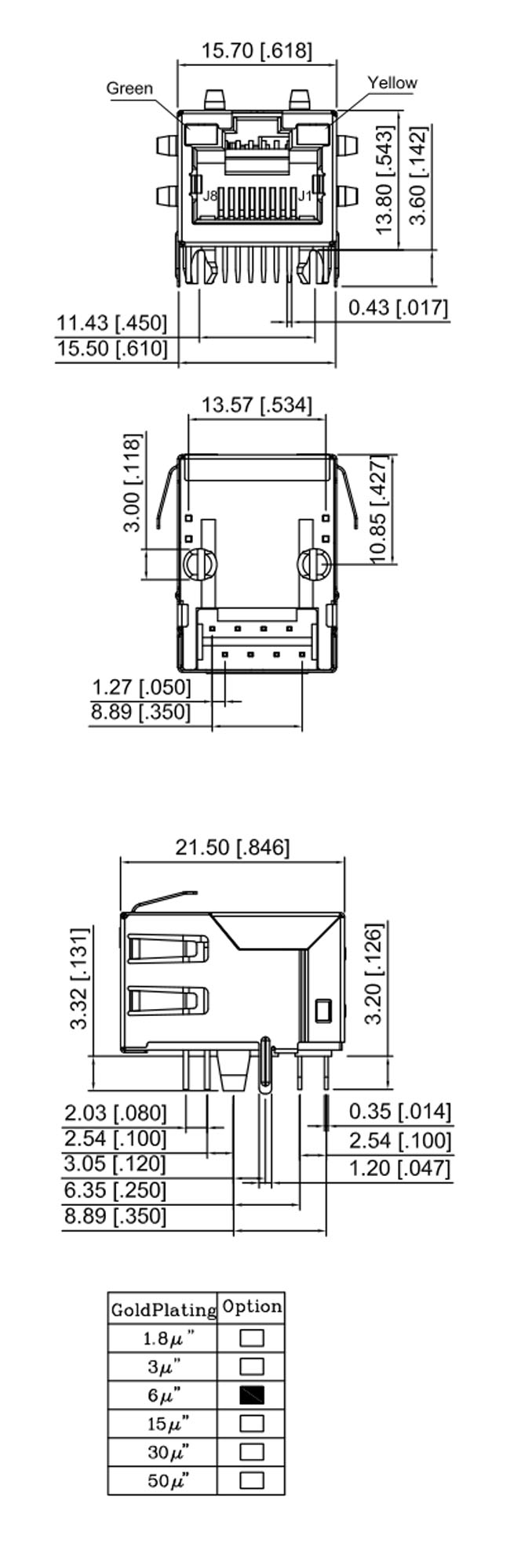

9. Mechnical Drawing
